GitHub-style User Profile with Activity Heatmap

This project demonstrates how to replace a Filament resource's ViewRecord page with a fully custom Blade view — a GitHub-style profile sidebar paired with a 53-week activity heatmap. The whole thing is rendered inside a top-navigation panel whose topbar is constrained to the same max-w-7xl width as the page body, so the logo, nav links, and content column all line up on a single vertical edge.

The repository contains the complete Laravel + Filament project to demonstrate the functionality, including migrations/seeds for the demo data.

The Filament project is in the app/Filament folder.

Feel free to pick the parts that you actually need in your projects.

How to install

• Clone the repository with git clone
• Copy the .env.example file to .env and edit database credentials there
• Run composer install
• Run php artisan key:generate
• Run php artisan storage:link
• Run php artisan migrate:fresh --seed (it has some seeded data for your testing)
• Run npm install && npm run build
• That's it: launch the URL /admin and log in with credentials [email protected] and password

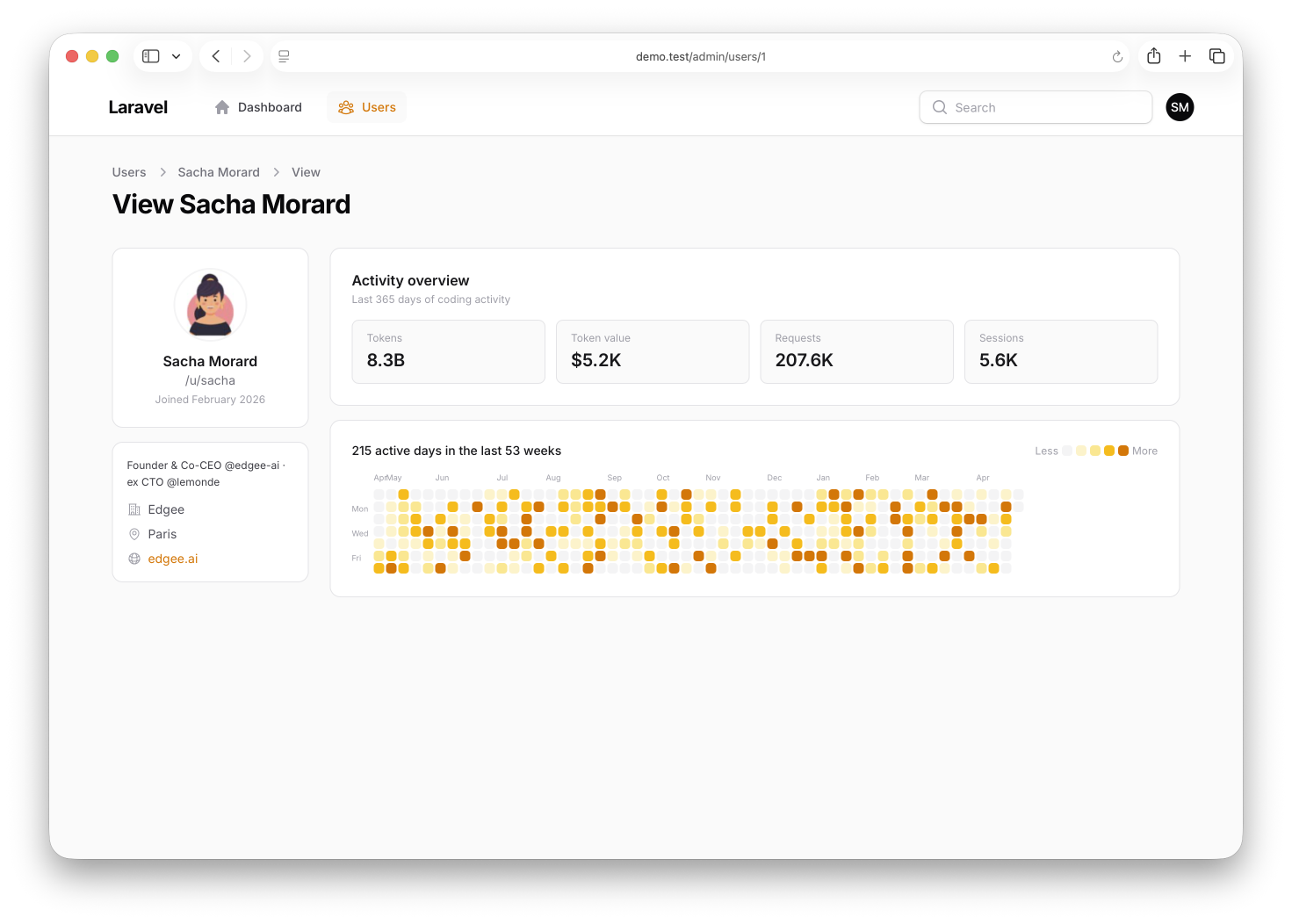

Screenshot

How It Works

1. AdminPanelProvider — topNavigation() and a custom theme

Two method calls in the panel provider drive the entire layout chrome: one switches the panel from the default sidebar to a horizontal topbar, and the other tells Filament to load our scoped CSS file alongside its own theme.

app/Providers/Filament/AdminPanelProvider.php

return $panel
    ->default()
    ->id('admin')
    ->path('admin')
    ->viteTheme('resources/css/filament/admin/theme.css')
    ->login()
    ->colors([
        'primary' => Color::Amber,
    ])
    ->topNavigation()
    ->discoverResources(in: app_path('Filament/Resources'), for: 'App\Filament\Resources')
    // ...

The key points:

• ->topNavigation() is the entire layout switch — calling it once moves the resource navigation from the left sidebar into a horizontal bar across the top of every page, which is what makes the max-w-7xl constraint in the next step interesting (a sidebar layout has nothing to constrain)
• ->viteTheme('resources/css/filament/admin/theme.css') is what makes the CSS file in the next step actually load — without this call, dropping rules into theme.css would have no effect; Filament wouldn't include the file in the panel's compiled assets
• 'primary' => Color::Amber is the single line that drives the heatmap's intensity ramp — the bg-primary-100 / bg-primary-400 / bg-primary-600 classes used in getHeatmapData() resolve against this palette, so swapping it to Color::Green recolors the whole heatmap with no other changes
• The login page, resource discovery, and middleware stack are all stock Filament defaults — none of them needed adjusting for this demo, which keeps the diff against a fresh php artisan filament:install minimal

2. theme.css — Constraining the topbar to the content width

Filament's default top navigation stretches the entire topbar (background, ring, and contents) edge-to-edge across the viewport. The page body underneath, though, is centered and capped at max-w-7xl. The result by default is a misalignment: the logo sits flush left while the page body sits two centimeters in. The fix is two CSS rules.

resources/css/filament/admin/theme.css

@import '../../../../vendor/filament/filament/resources/css/theme.css';

@source '../../../../app/Filament/**/*';
@source '../../../../resources/views/filament/**/*';

/* Constrain top navigation content to match the main content width */
.fi-topbar-ctn {
    @apply bg-white shadow-xs ring-1 ring-gray-950/5 dark:bg-gray-900 dark:ring-white/10;
}

.fi-topbar {
    @apply max-w-7xl mx-auto w-full shadow-none ring-0 bg-transparent dark:bg-transparent;
}

The key points:

• .fi-topbar-ctn keeps the white background, soft shadow, and ring — those visuals stay full-width so the topbar still reads as a continuous bar across the screen, not a floating island
• .fi-topbar is the inner element where the contents actually live — applying max-w-7xl mx-auto w-full centers and caps it at the same width as the page body, so the logo on the left and the user menu on the right end up exactly above the page content's left and right edges
• bg-transparent and shadow-none ring-0 on .fi-topbar prevent the inner element from drawing a second background on top of the outer container's — without these, the centered region would show as a slightly-darker stripe inside the lighter outer bar
• Two selectors, no !important, no JavaScript — the entire layout fix is a 7-line CSS block scoped to two Filament-internal classes; deleting the block restores Filament's default full-width topbar with zero side effects elsewhere

3. UserResource — Standard list, plus one custom view page

The resource itself is deliberately plain — a standard table on the index page, a single registered view route, no edit form, no infolist, no custom actions. All the visual customization lives in the page that gets rendered for /{record}, not in the resource class.
